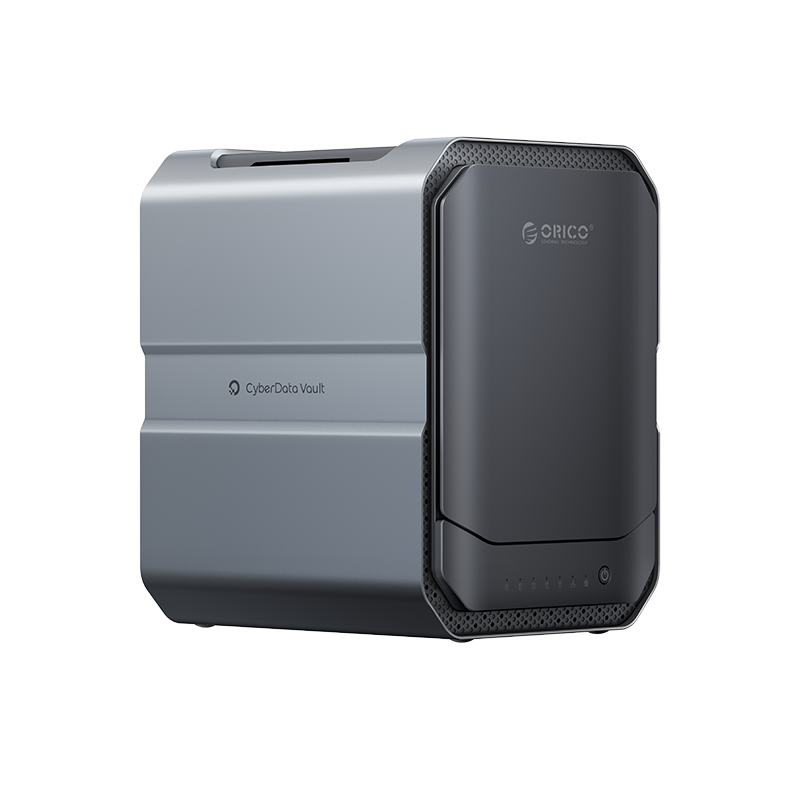

CyberData 11Bay AI NAS with Hybrid Storage- Launching Soon on Kickstarter
  • Model
    ORICO-CF56
  • CPU
    Intel Core N305 (3.8GHz, 8 Cores, 8 Threads, 6MB Intel® Smart Cache, TDP 15W, TDP Down 9W)
  • RAM Memory
    16GB DDR5, Expandable up to 64GB
  • Flash Memory (System Disk)
    eMMC 64GB
  • Max. Storage
    168TB (5-bay for 2.5"/3.5"SATA HDD/SSD, 6 M.2 SSD slots)
  • Support Drive Capacity
    24TB SATA HDD Per Bay, 8TB M.2 SSD Per Bay
  • Internal Interface
    M.2 M-Key NVMe 2280 x6, SATA 3.0 6Gbps x5, DDR5 SO-DIMM x1
  • External Interface
    1* USB3.2 Gen2 USB-A (10 Gbps), 1* USB3.2 Gen2 USB-C (10 Gbps), 2* USB2.0 (480Mb/s)
  • LAN Port
    10GbE*2 (Aggregated up to 20GbE)
  • HDMI
    1* HDMI 2.0 (4K)
  • DP
    1* DP 1.4
  • Package Included
    1* Power Addapter, 2* 10GbE Network Cable, 1* Screwdriver, 2* Screw Pack, 1* User Manual
  • Dimension
    240(L)*201(W)*280(H)mm
